Quick-Lock PRESSURE PIPE (LD + HD)
The system for rehabilitating
pressurized pipelines
Application: pressurized pipelines
- Sealing pipe joints
- In- and exfiltration
- Crack systems

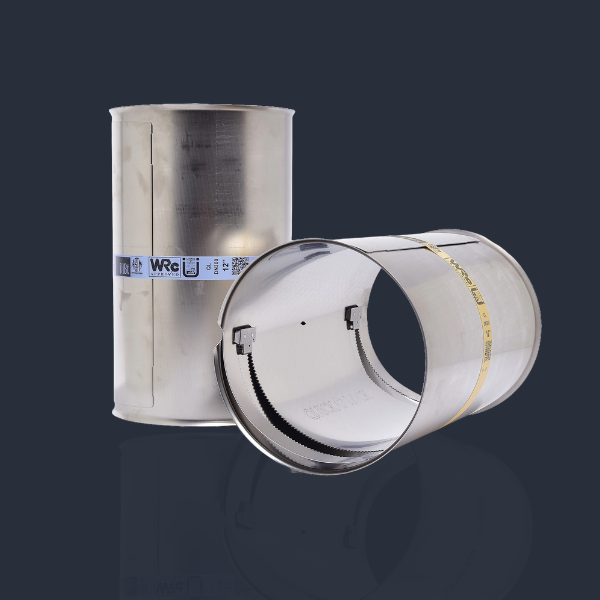

The Quick-Lock PRESSURE PIPE sleeve (LD + HD) was developed to rehabilitate damage in pipes or for liner connection with a nominal diameter of DN 150–800 / 6″–32” and internal pressures of -0.9 bar to +50 bar / -13.05 psi to 725.19 psi. LD stands for “low duty” and HD means “high duty”.
Quick-Lock PRESSURE PIPE (LD + HD) system description
The Quick-Lock PRESSURE PIPE sleeve (LD + HD) serves to rehabilitate damage in pressurized pipelines or liner connection with a nominal diameter between DN 150 and DN 800 / 6” and 32”. The Quick-Lock PRESSURE PIPE sleeve (LD) was designed to rehabilitate pressurized pipelines that are subject to infrequent, low-intensity pressure surges.
It is suitable for internal pressures from -0.9 bar to +50 bar / -13.05 psi to +725.19 psi.
The Quick-Lock PRESSURE PIPE sleeve (HD) was developed to permanently withstand high-frequency, high-intensity pressure surges. In the course of testing, the sleeve was able to endure more than 2 million pressure load cycles between -0.9 bar and +50 bar / -13.05 psi and +725.19 psi, thanks to its advanced locking mechanism, thicker material, and special alloy.
This is a milestone never before reached in the sleeve technology sector.
When using a Quick-Lock sleeve in a pressurized pipeline, the pressure resistance can only be guaranteed when the sleeve is used in combination with a protector shield.
The protector shield stops the seal from creeping into any gaps or cracks in the pipe wall. This prevents the seal from being damaged.
How it works
- The Quick-Lock PRESSURE PIPE sleeve (LD + HD) was developed specifically for use in pressurized pipelines.
- For internal pressures from -0.9 bar to +50 bar / -13.05 psi to +725.19 psi.
- The Quick-Lock PRESSURE PIPE sleeve (LD) was designed to rehabilitate pressurized pipelines that are subject to infrequent, low-intensity pressure surges.
- The Quick-Lock PRESSURE PIPE sleeve (HD) was developed to ensure long-term resistance in the case of high-frequency, high-intensity pressure surges.
- The Quick-Lock PRESSURE PIPE sleeve is also available as a LinerEnd sleeve (LD+HD).
What you need
- Camera or robot system
- Compressor
- Quick-Lock installation packer
Advantages of the system
- Purely mechanical clamping
- User-friendly
- No chemical construction materials
- Long service life
- Refined locking mechanism
- Special alloy
Scope of application
- Sewer pipes
- Portable water pipes
- Seawater pipes
- Industrial pipes
- Pressure pipes
- District heating pipes
- Pipelines
Specifications
Materials
The materials 316L /904L stainless steel and the silicone seal are used in potable water applications, seawater areas, wastewater pressure pipes, industrial rehabilitation, and for sealing boreholes or district heating pipelines.
The stainless steel grades 316L / 904L are virtually indefinitely durable.
For rehabilitation in seawater areas stainless steel grade 904L is used.
Product range
Three different sizes of Quick-Lock PRESSURE PIPE sleeves (LD + HD) are available:
- Type 1: Length 400mm/16”; suitable for diameters DN 150–400 / 6"–16”, LD + HD= internal pressures between -0.9 bar and +50 bar / -13.05 psi to +725.19 psi
- Type 2: Length 500mm/20”; suitable for diameters DN 450–600 / 18"–24”, LD + HD= internal pressures between -0.9 bar and +50 bar / -13.05 psi to +725.19 psi
- Type 3: Length 500mm/20”; suitable for diameters DN 650–800 / 26"–27”, LD + HD= internal pressures between -0.9 bar and +50 bar / -13.05 psi to +725.19 psi
Two different sizes of Quick-Lock PRESSURE PIPE LinerEnd sleeves (LD + HD) are available:
- Type 1: Length 250mm/9.84”; suitable for diameters DN 150–400 / 6"–16”, LD + HD= internal pressures between -0.9 bar and +50 bar / -13.05 psi to +725.19 psi
- Type 2: Length 300mm/11.81”; suitable for diameters DN 450–800 / 18"–32”, LD + HD= internal pressures between -0.9 bar and +50 bar / -13.05 psi to +725.19 psi
Quality and certifications
All information (data sheets, instructions, and approvals) for the entire Quick-Lock system from UHRIG as well as order forms can be found at: Downloads: Downloads
If you’d like to know more about our products, we’re happy to answer your questions anytime.
